Description

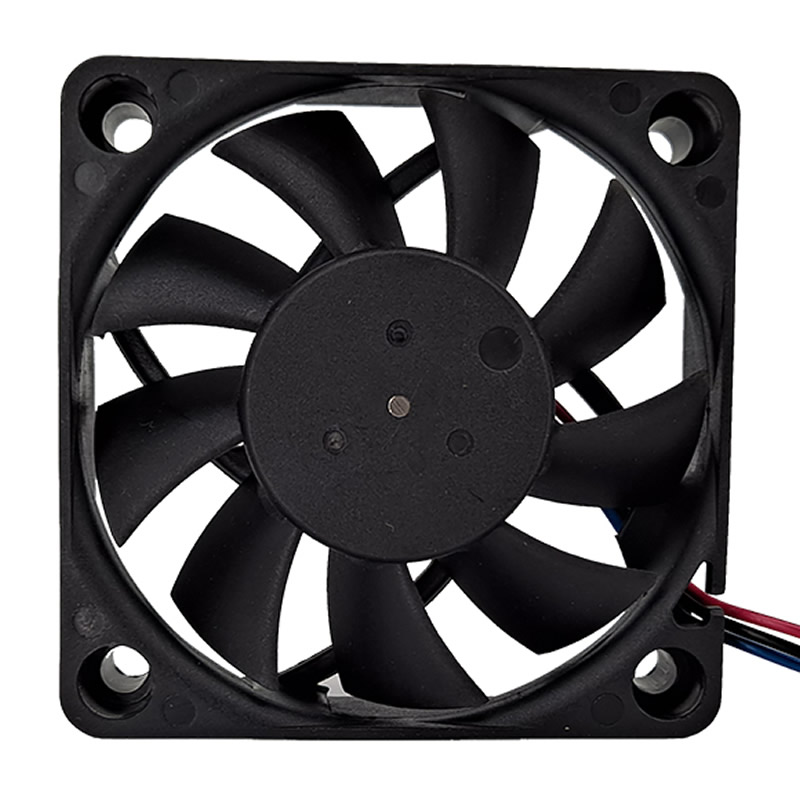

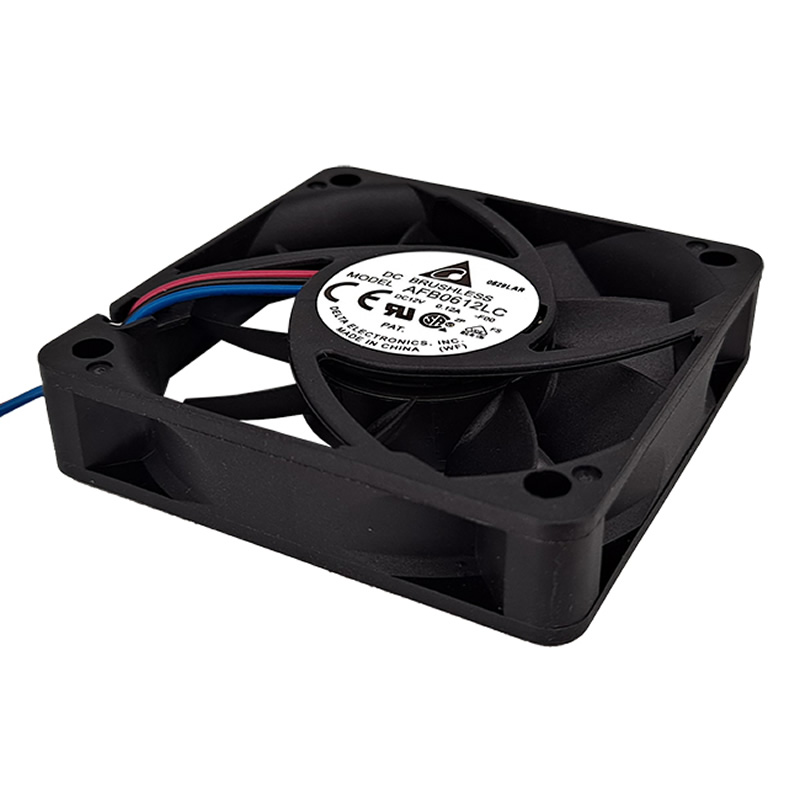

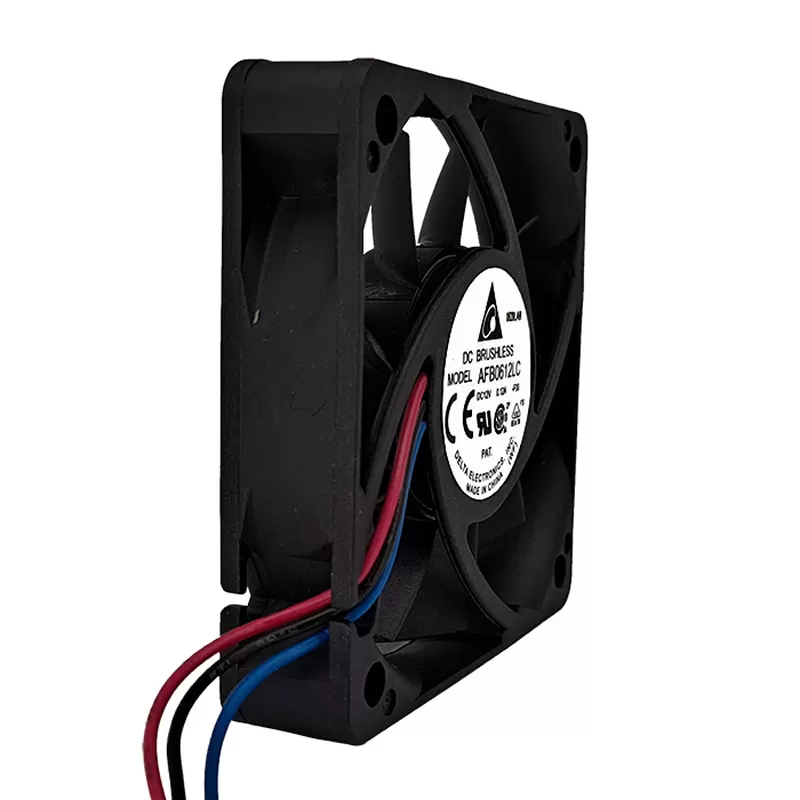

AFB0612LC-F00 Delta 60x60x13mm Ball 12VDC 15.40CFM(0.436m3/min) 0.083inchH2O(2.11mmH2O) 24.0dB(A) 0.96W 3000RPM 3wireleads fan
Specifications
| Model | AFB0612LC-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x13 mm |
| Power Rating | 0.96 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 0.436 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 3000 RPM |
| Fan Type | DC |
| Static Pressure | 0.083 inchH2O (2.11 mmH2O) |
| Noise Level | 24.0 dB(A) |
| Air Flow | 15.40 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.074 lb (33.56 g) |
| Category | Axial |
| Current Rating | 0.12 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 9 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612LC-F00-Delta.pdf |
