Description

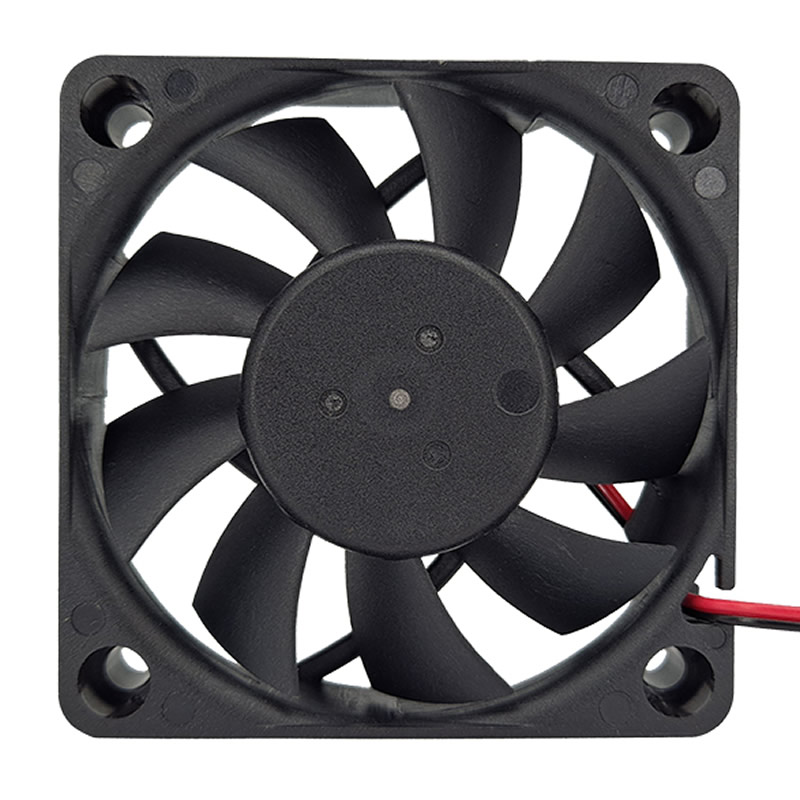

AFB0612HC Delta 12VDC 60x60x13mm 21.2CFM 0.163inH2O(40.6Pa) Ball 31.5dB(A) 1.68W 4200RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0612HC |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x13 mm |
| Air Flow | 21.2 CFM |
| Air Flow (m3) | 0.594 m³/min |
| Static Pressure | 0.163 in H2O (40.6 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 31.5 dB(A) |
| Power Rating | 1.68 W |
| Fan Speed | 4200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.074 lb (33.56 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612HC-Delta.pdf |
