Description

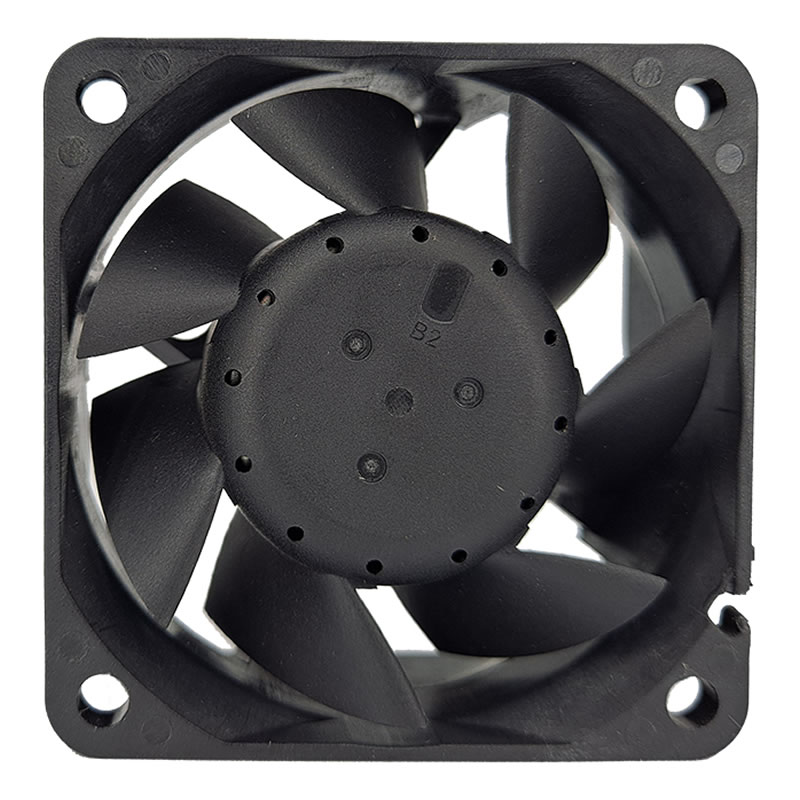

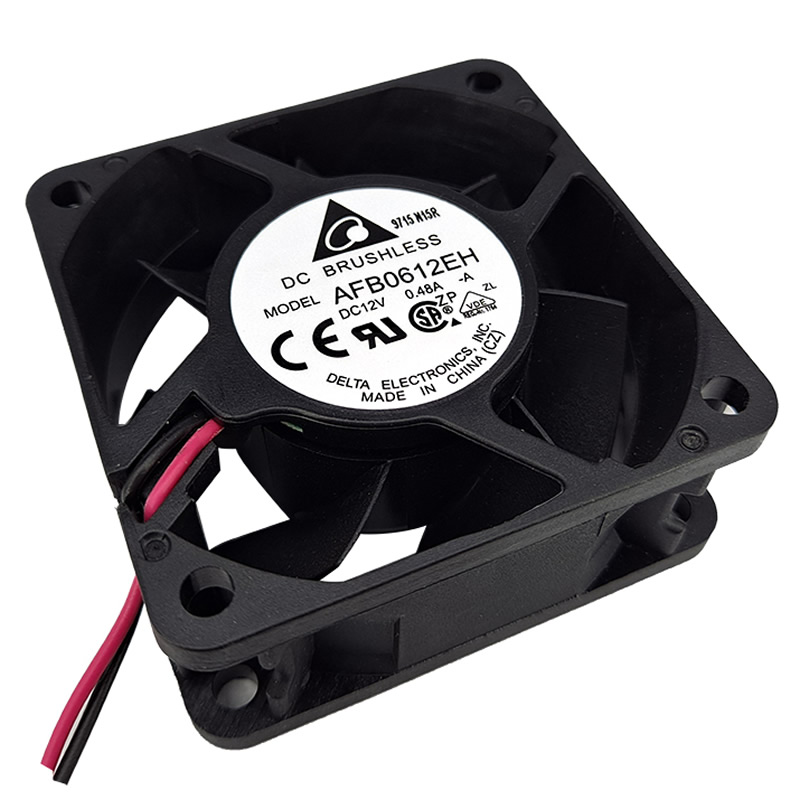

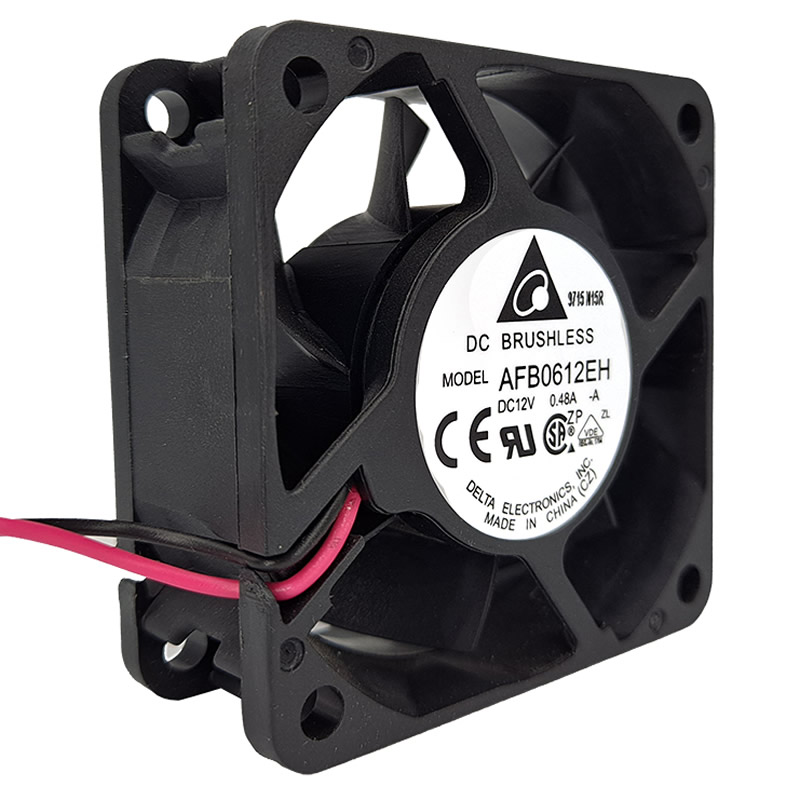

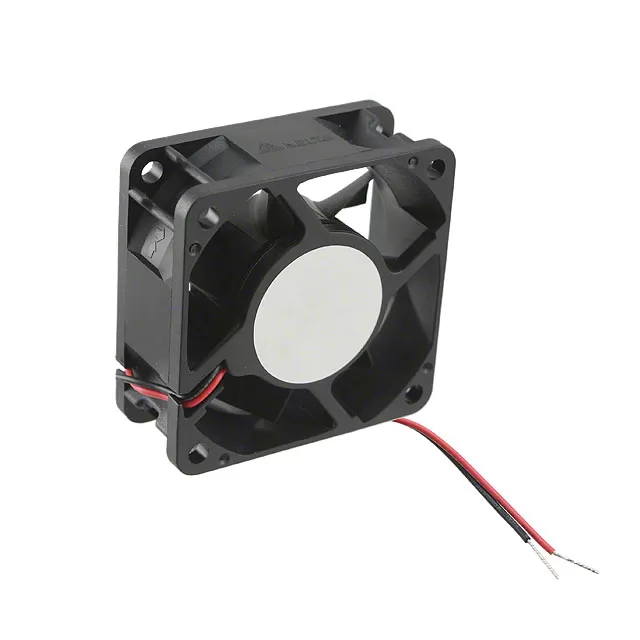

AFB0612EH-A Delta 60x60x25.40mm Ball 12VDC 38.35CFM(1.086m3/min) 0.544inchH2O(13.81mmH2O) 46.5dB(A) 4.56W 6800RPM 2wireleads fan
Specifications
| Part Number | AFB0612EH-A |
|---|---|
| Noise Level | 46.5 dB(A) |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Operating Voltage | 4 ~ 13.8 VDC |
| Current Rating | 0.38 A |
| Category | Axial |
| Weight | 0.176 lb (80.00 g) |
| Bearing Type | Ball Bearing |
| Voltage Rating | 12 VDC |
| Air Flow | 38.35 CFM |
| Static Pressure | 0.544 inchH2O (13.81 mmH2O) |
| Power Rating | 4.56 W |
| Fan Type | DC |
| Fan Speed | 6800 RPM |
| Manufacturer | Delta Electronics |
| Termination | 2 wire leads |
| Dimensions | 60x60x25.40 mm |
| Air Flow (m3) | 1.086 m3/min |
| Series | AFB |
| Features | Locked Rotor Protection |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612EH-A-Delta.pdf |
