Description

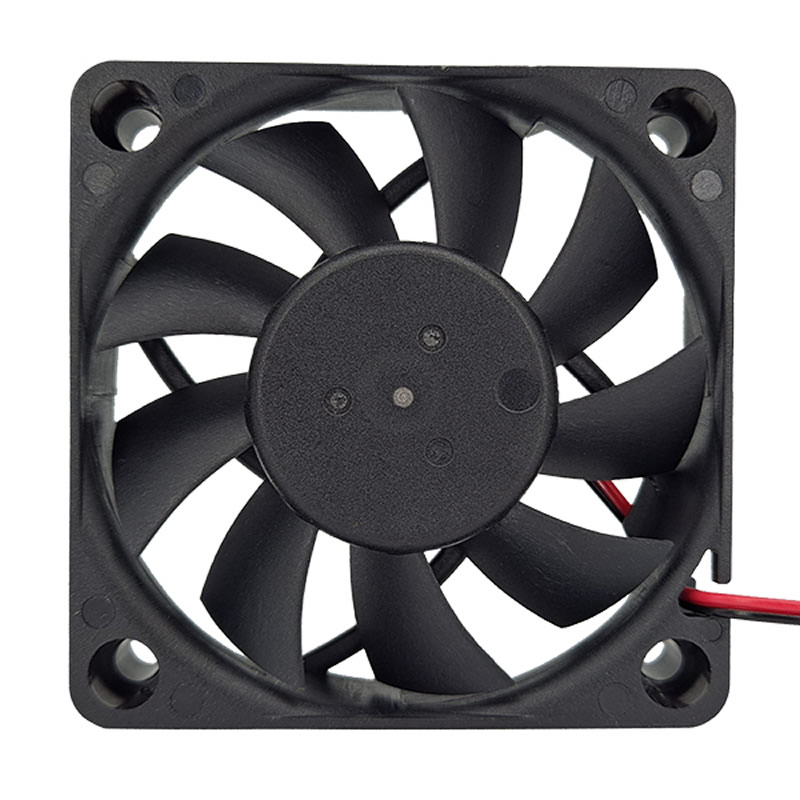

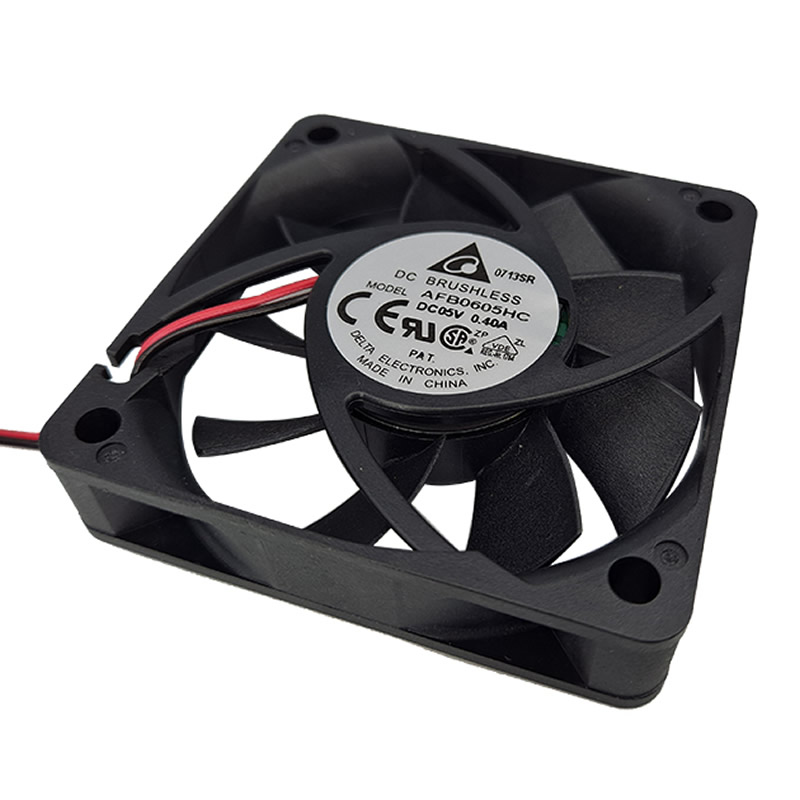

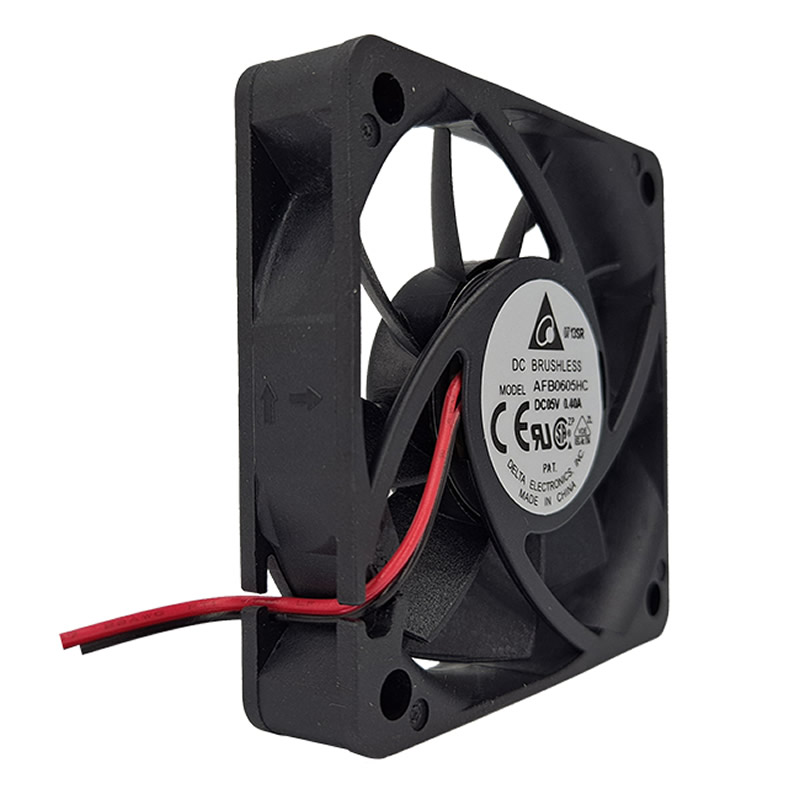

AFB0605HC Delta 60x60x13mm Ball 5VDC 21.22CFM(0.601m3/min) 0.163inchH2O(4.15mmH2O) 31.5dB(A) 1.45W 4200RPM 2wireleads fan
Specifications
| Part Number | AFB0605HC |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.601 m3/min |
| Dimensions | 60x60x13 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4200 RPM |
| Power Rating | 1.45 W |
| Noise Level | 31.5 dB(A) |
| Static Pressure | 0.163 inchH2O (4.15 mmH2O) |
| Air Flow | 21.22 CFM |
| Voltage Rating | 5 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.074 lb (33.56 g) |
| Category | Axial |
| Current Rating | 0.29 A |
| Operating Voltage | 4.5 ~ 5.5 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0605HC-Delta.pdf |
