Description

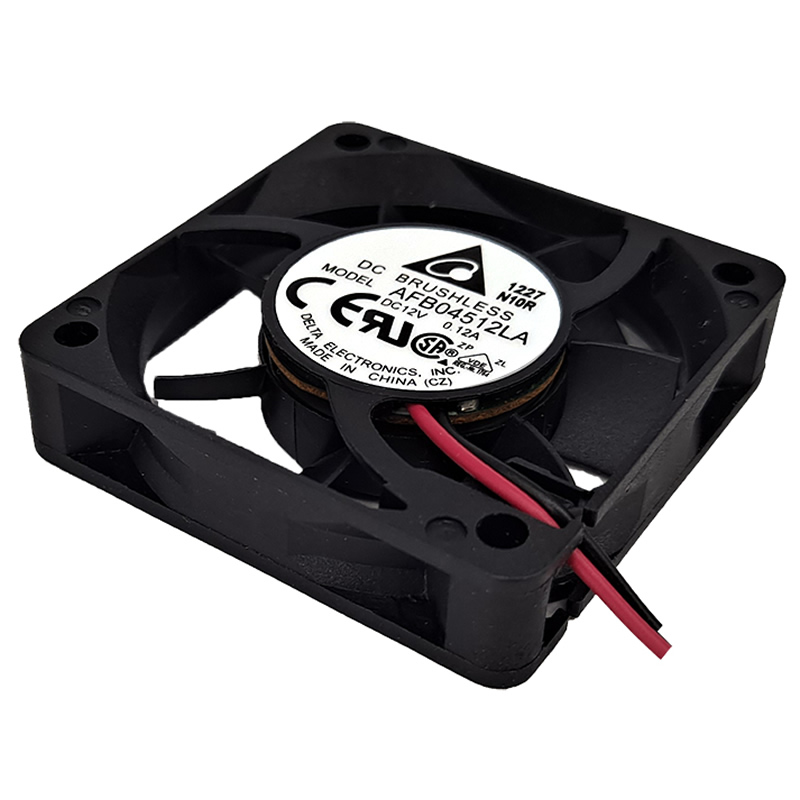

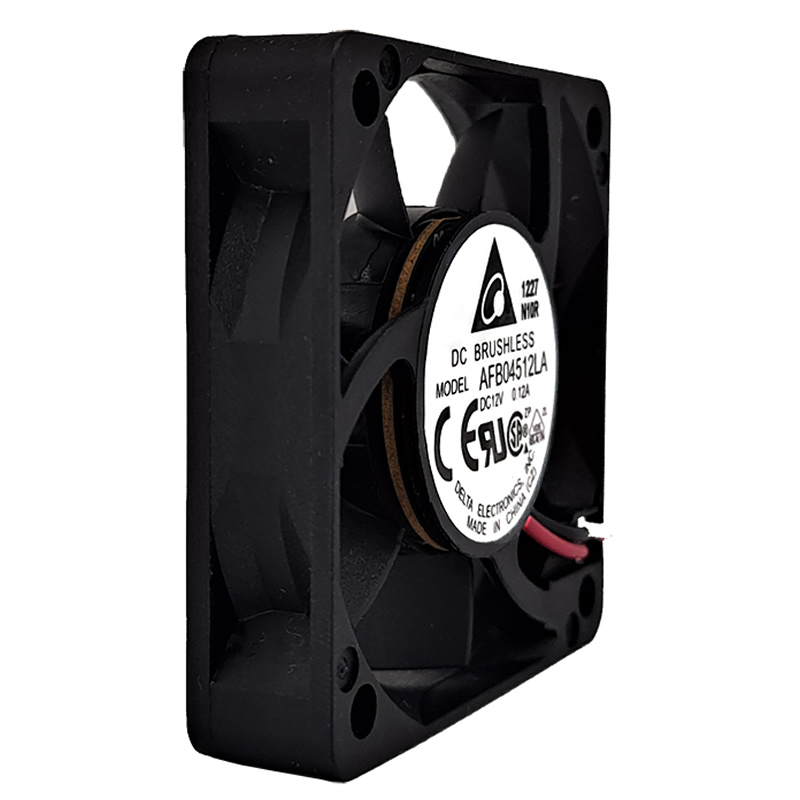

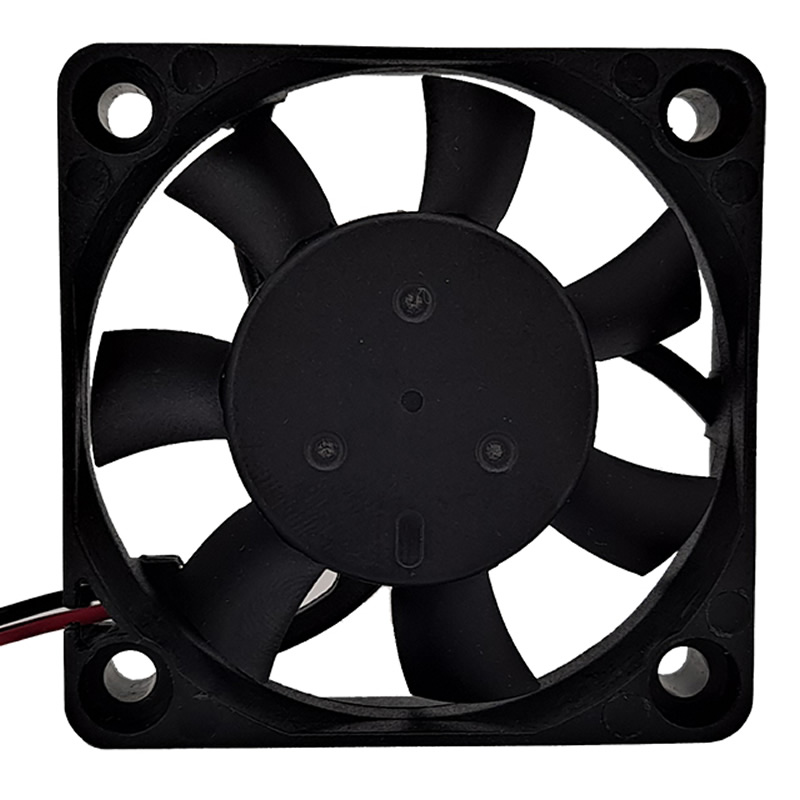

AFB04512LA Delta 12VDC 45x45x10mm 7.7CFM 0.081inH2O(20.1Pa) Ball 24.5dB(A) 960mW 4000RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB04512LA |
|---|---|
| Dimensions | 45X45X10 mm |
| Manufacturer | Delta Electronics |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Air Flow | 7.7 CFM |
| Air Flow (m3) | 0.216 m³/min |
| Static Pressure | 0.081 in H2O (20.1 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 24.5 dB(A) |
| Power Rating | 960 mW |
| Fan Speed | 4000 RPM |
| Termination | 2 Wire Leads |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.035 lb (15.88 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB04512LA-Delta.pdf |
