Description

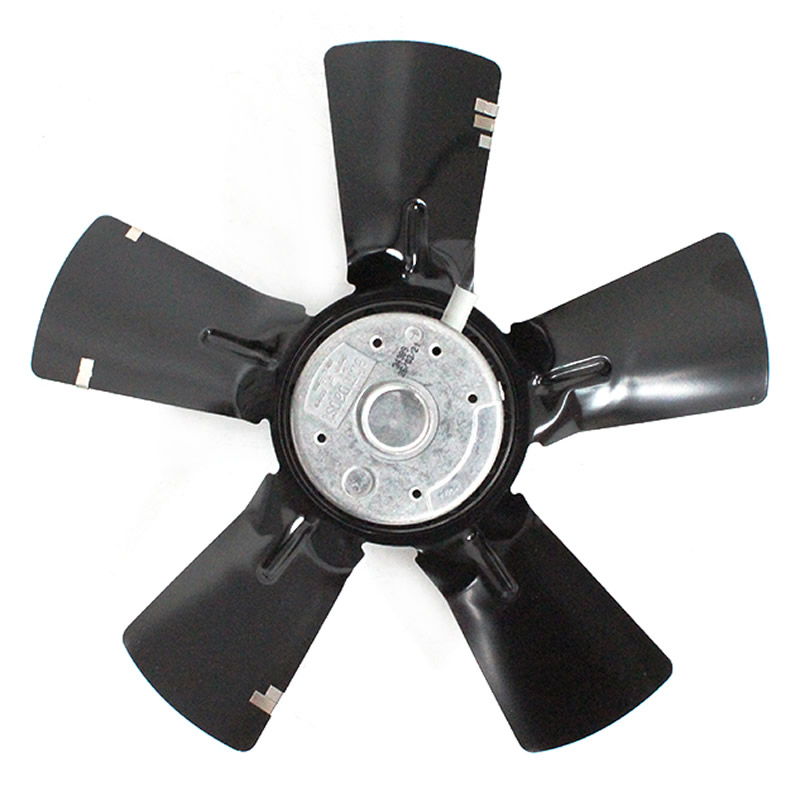

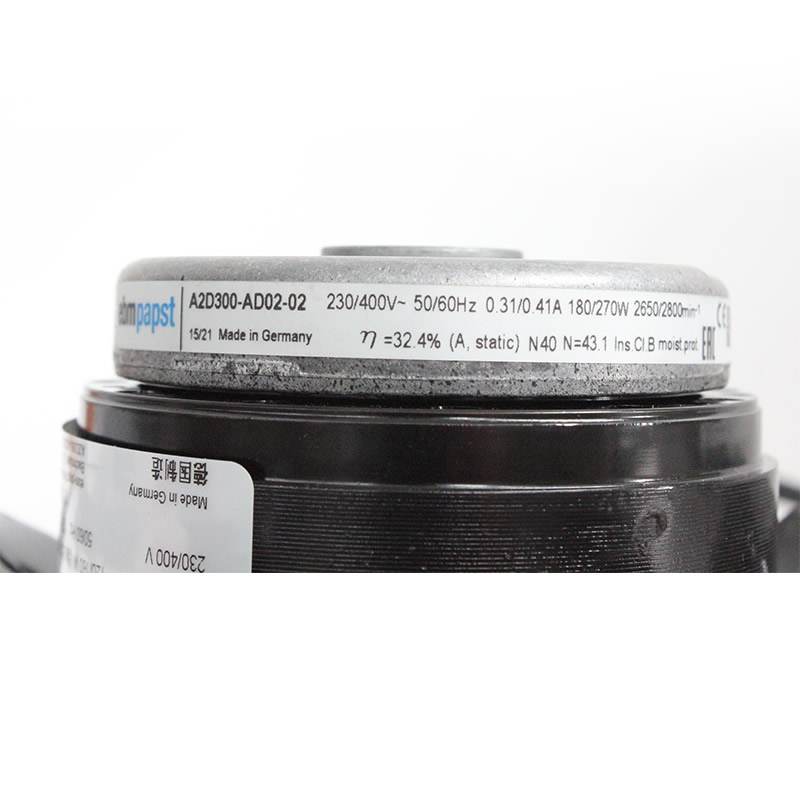

A2D300-AD02-02 ebmpapst 230/400VAC 300x104mm 1731.7CFM Ball 77dB(A) 270W 2800RPM IP44 7 Wire Leads with Splice Terminals Tubeaxial, 3 Phase Dual Voltage AC axial fan
Specifications
| Part Number | A2D300-AD02-02 |
|---|---|
| Manufacturer | ebm-papst |
| Series | A2D250 |
| Fan Type | AC |
| Voltage Rating | 230/400 VAC |
| Dimensions | 300×104 mm |
| Air Flow | 1731.7 CFM |
| Air Flow (m3) | 48.49m³/min |
| Static Pressure | 0.401 in H2O (100.0 Pa) |
| Bearing Type | Ball Bearing |
| Category | Tubeaxial, 3 Phase |
| Features | Dual Voltage |
| Noise Level | 77 dB(A) |
| Power Rating | 270 W |
| Fan Speed | 2800 RPM |
| Termination | 7 Wire Leads with Splice Terminals |
| IP Rating | IP44 |
| Operating Temperature | -13 ~ 95°F (-25 ~ 35°C) |
| Approval Agency | CCC, CE, EAC |
| Number of blades | 5 |
| Subcategory | AC axial fan |
| Shipping Weight | 3 kg |
| Product PDF | A2D300-AD02-02-ebmpapst.pdf |
