Description

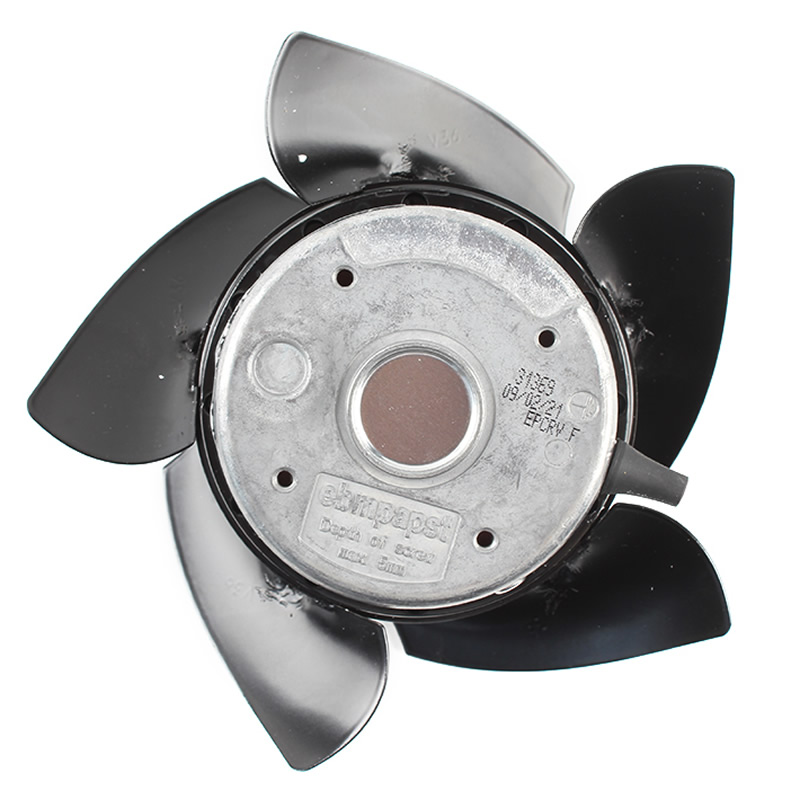

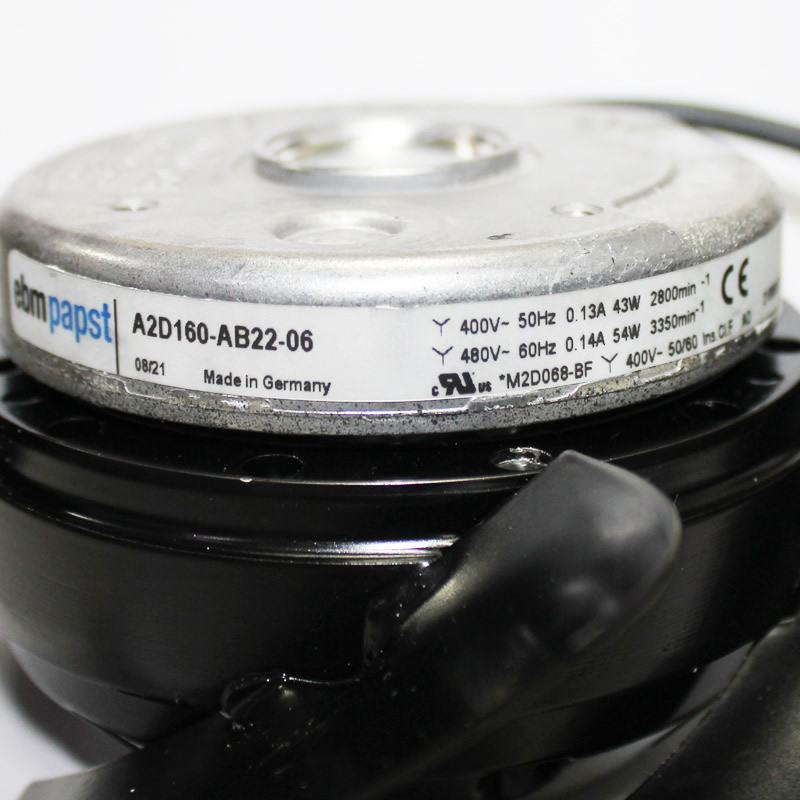

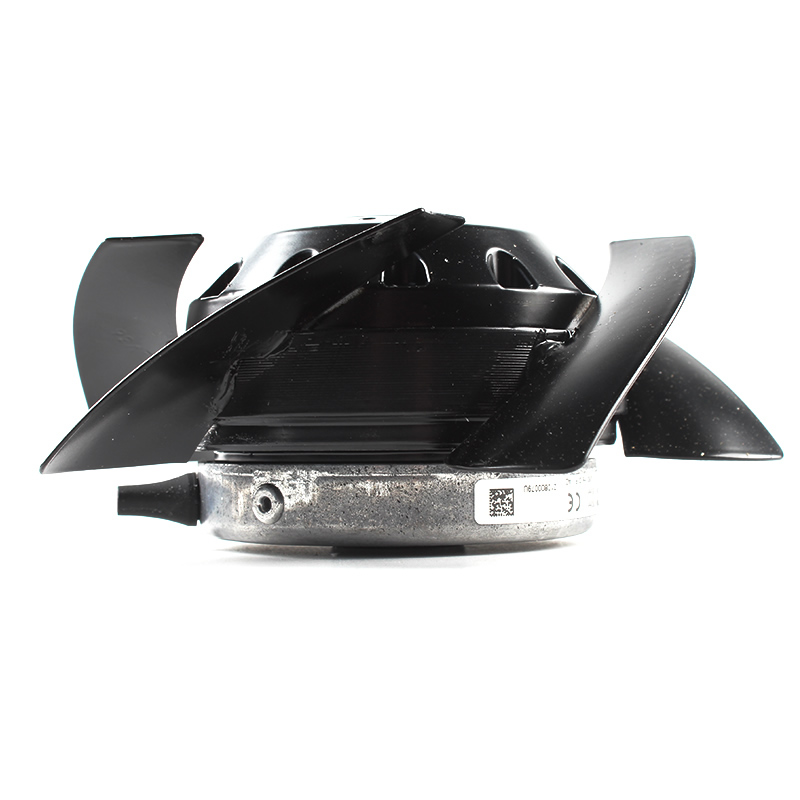

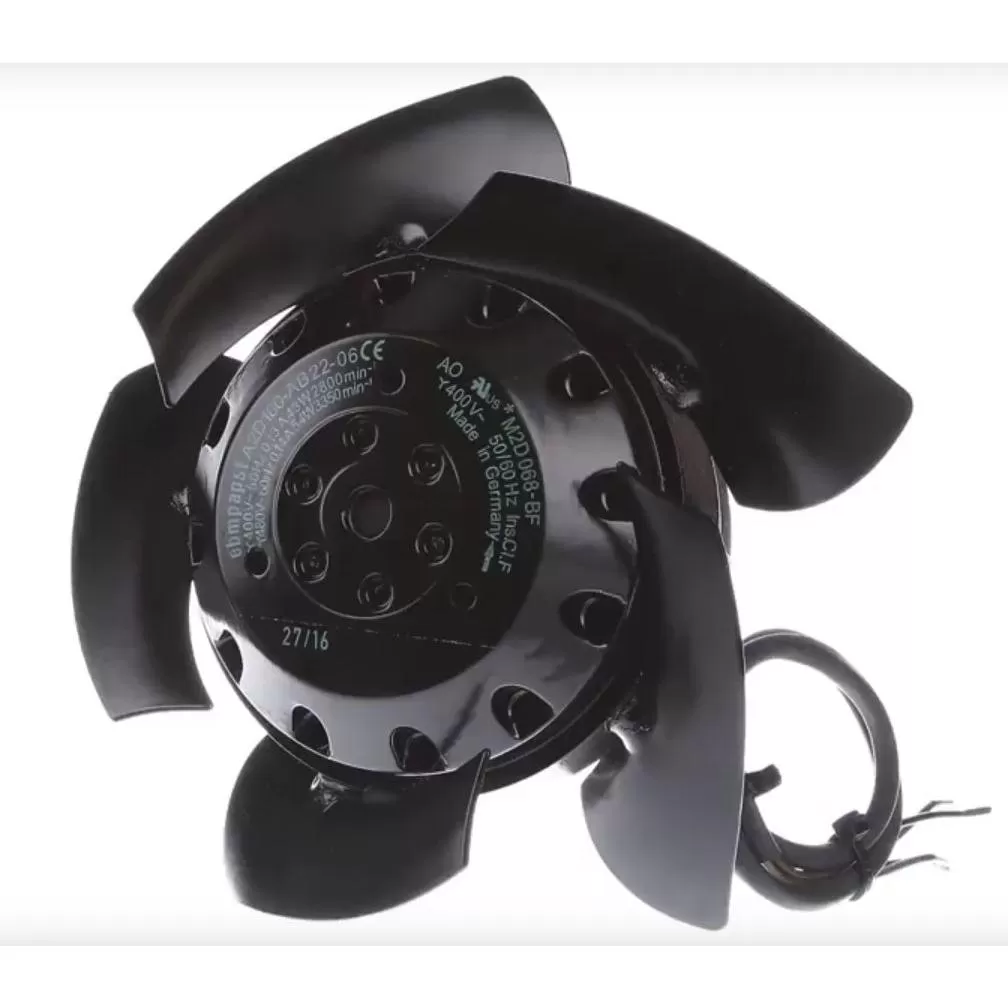

The ebmpapst A2D160-AB22-06 is a high-performance AC axial fan designed for industrial ventilation and cooling applications. Featuring a 160 mm axial fan size, straight blade impeller design, and three-phase AC motor, this model provides reliable airflow performance for industrial equipment, electrical systems, control cabinets, and machine cooling applications.
The A2D160-AB22-06 uses the M2D068-BC motor and operates with 400VAC at 50Hz or 480VAC at 60Hz. With a compact industrial design, sheet steel impeller, and robust construction, this fan is engineered for continuous operation in demanding environments requiring stable air movement and dependable thermal management.
Designed as part of the ebmpapst AC axial fan range, the A2D160-AB22-06 combines efficient airflow performance with industrial reliability. The fan features a ball bearing motor system, IP44 protection, Class F insulation, and five-blade impeller structure, making it suitable for applications where long service life and consistent cooling performance are required.
Key Features
- Original ebmpapst A2D160-AB22-06 AC axial fan
- 160 mm industrial axial fan design
- Straight blade impeller from ebmpapst A series
- Single-intake configuration
- Three-phase AC motor design
- M2D068-BC motor integrated design
- 400VAC / 480VAC operating voltage
- 43W / 54W power consumption
- Ball bearing construction for long service life
- Sheet steel impeller with black painted surface
- IP44 protection class
- Class F insulation system
- CE, UL and CSA approved design
Technical Specifications
| Brand | ebmpapst |
| Model | A2D160-AB22-06 |
| Fan Type | AC Axial Fan |
| Series | A Series |
| Motor | M2D068-BC |
| Phase | 3~ |
| Rated Voltage | 400VAC / 480VAC |
| Frequency | 50Hz / 60Hz |
| Wiring | Y Connection |
| Speed | 2800 rpm / 3350 rpm |
| Power Consumption | 43W / 54W |
| Current Draw | 0.13A / 0.14A |
| Size | 160 mm |
| Number of Blades | 5 |
| Blade Material | Sheet Steel, Painted Black |
| Rotor Surface | Painted Black |
| Airflow Direction | V |
| Direction of Rotation | Counterclockwise viewed toward rotor |
| Bearing Type | Ball Bearing |
| Protection Class | IP44 |
| Insulation Class | F |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | +90°C |
| Weight | 1.1 kg |
| Approvals | CE, UL, CSA |
Applications
- Industrial cooling systems
- Electrical control cabinets
- Power electronics cooling
- Automation equipment
- Machine ventilation systems
- Industrial equipment cooling
- HVAC and ventilation applications
Replacement Information
The ebmpapst A2D160-AB22-06 is used as a replacement AC axial fan where a 160 mm three-phase industrial fan with 400VAC or 480VAC operation is required. Before replacement, confirm the complete model number, voltage, frequency, wiring configuration, mounting dimensions, and airflow direction.
Replacement verification should include:
- Model: A2D160-AB22-06
- Motor: M2D068-BC
- Voltage: 400VAC / 480VAC
- Phase: Three-phase
- Frame size: 160 mm
- Protection: IP44
Specifications
| Model Number | A2D160-AB22-06 |
|---|---|
| Termination | Leads |
| Fan Type | AC |
| Bearing Type | Ball Bearing |
| Dimensions | 160.5×62.5 mm |
| Voltage Rating | 400 VAC |
| Power Rating | 43 W |
| Fan Speed | 2800 RPM |
| Manufacturer | ebmpapst |
| IP Rating | IP44 |
| Category | Axial |
| Series | A2D160 |
| RoHS Status | ROHS3 Compliant |
| Air Flow CMH | 130 m³/h |
| Fan Size | Ø 160 mm |
| Voltage Rated | 400 VAC |
| Cooling Type | Axial Fan |
| Fan Speed Range | 2,000 – 4,500 RPM |
| Shipping Weight | 2 kg |
