4580N ebmpapst

Description

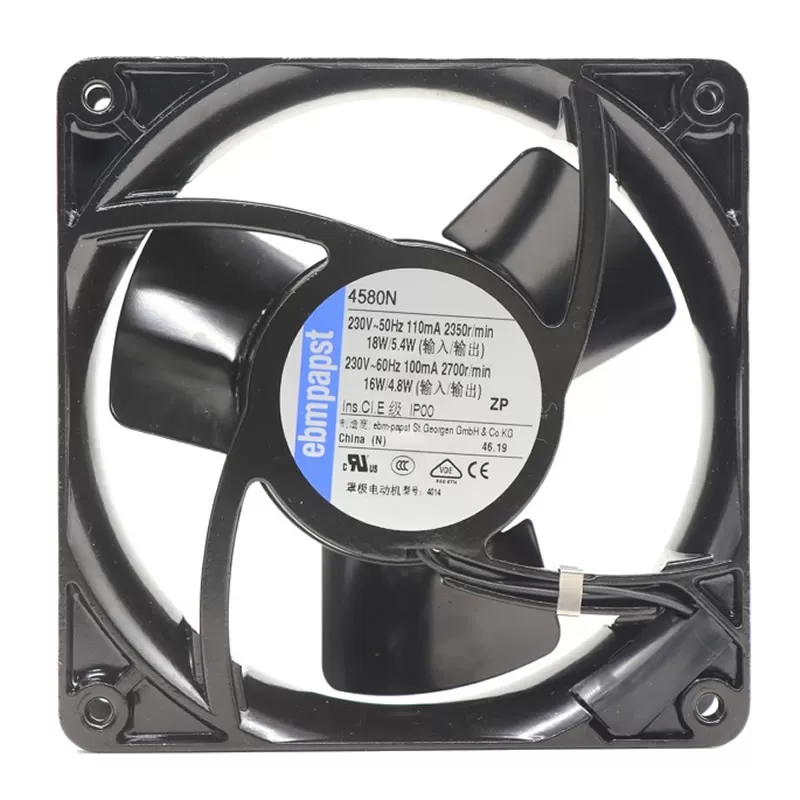

4580N ebmpapst AC 123m3/h 50Hz 119x119x38mm 41dB(A) 5.2B 230VAC Sintec 18W 2350RPM 2Terminals AC axial compact fan

The 4580N compact axial fan, manufactured by ebm-papst, is driven by single-phase 230VAC/50Hz power, operating at 2350rpm speed with 18W power consumption. It is suitable for environments ranging from -10°C to 55°C, delivering an airflow of 123m³/h, a sound power level of 5.2 bels (sound pressure level of 41dB(A)). Featuring a compact design with dimensions of 119×119×38mm and weighing 0.55kg, it incorporates a black-painted steel sheet impeller and a die-cast aluminum housing. Airflow is drawn in through struts, and the fan rotates clockwise. Equipped with Sintec sleeve bearings, it has an L10 life of 40,000 hours at 40°C (27,500 hours at maximum operating temperature). Connected via a 2-core 3.0×0.5mm flat plug, the housing features M4/UNC threaded grounding lugs and provides overload protection via impedance protection. Certified by VDE, CSA, UL, and CE, it is available with reinforced mounting flanges and exposed lead versions, making it suitable for heat dissipation and ventilation in equipment.

Specifications
