4412H ebmpapst

Description

4412H ebmpapst DC 7~14V 240m3/h 119x119x38mm 50dB(A) 6B 50dB(A) 12VDC 0.72A 8.6W 4300RPM Ball Bearing 2-Wire Leads axial compact fan

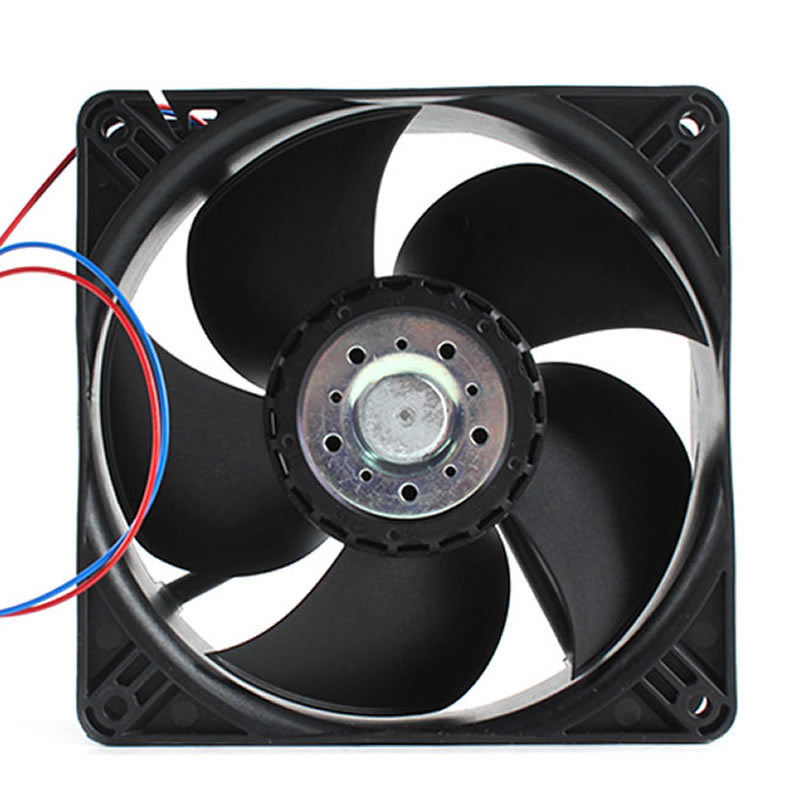

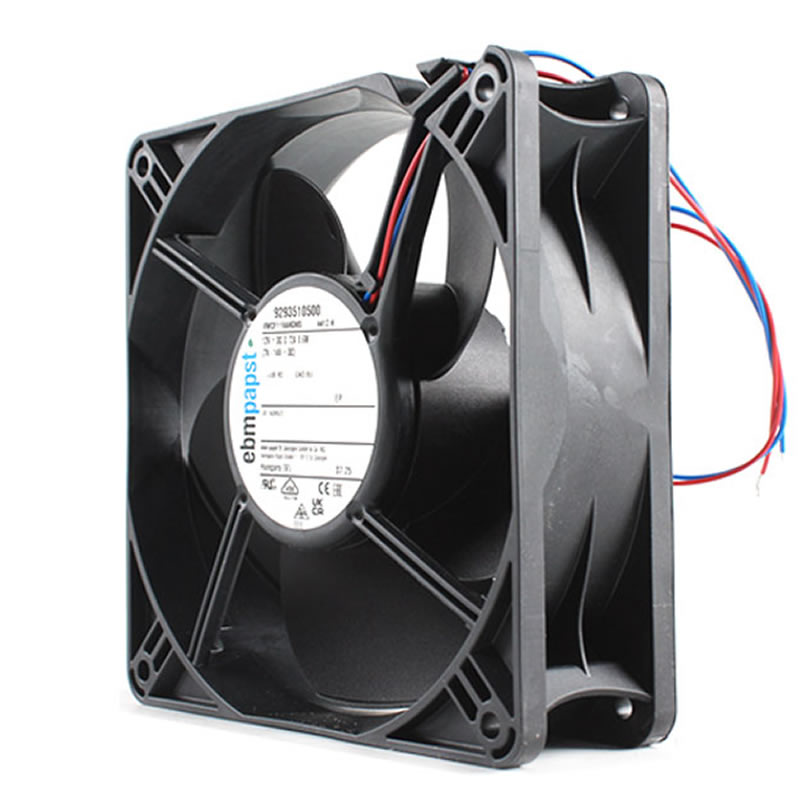

The 4412 H is a DC axial compact fan from ebm-paps, designed for high-airflow heat dissipation scenarios. It features a 12VDC nominal voltage (7–14VDC range), 4300rpm speed, 8.6W power consumption, and an operating temperature range of -20°C to 70°C, delivering 240m³/h air flow with a sound power level of 6.0B and sound pressure level of 50dB(A). With dimensions of 119x119x38mm and a weight of 0.25kg, it uses a glass-fiber reinforced PBT plastic housing and glass-fiber reinforced PA plastic impeller, with airflow directed as exhaust over struts and a clockwise rotation (when viewed toward the rotor). Equipped with ball bearings, it offers L10 service life of 57,500 hours at 40°C and 27,500 hours at maximum temperature. The fan comes with AWG24 stripped and tin-plated leads, supports reverse polarity and blocked rotor protection, and offers optional control inputs, alarm, and speed signals. Certified by VDE, CE, and other standards, it is suitable for industrial equipment and compact spaces requiring high heat dissipation.
