Description

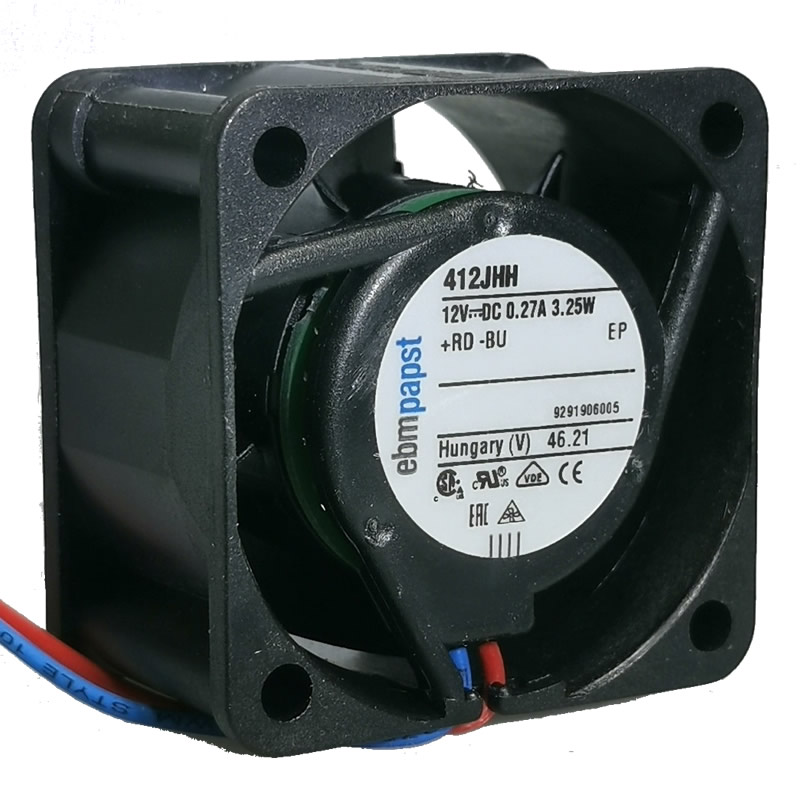

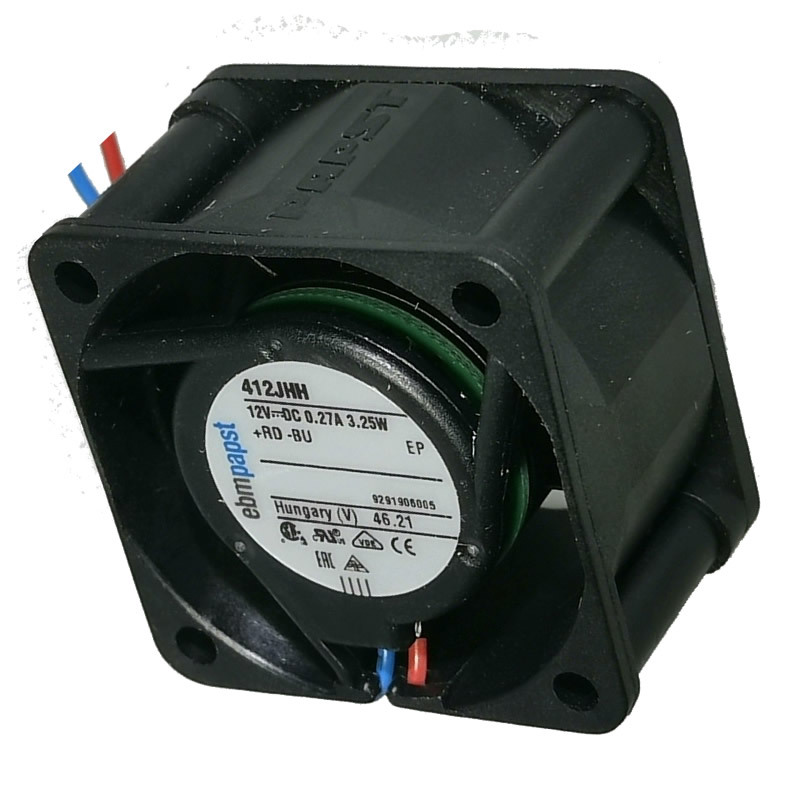

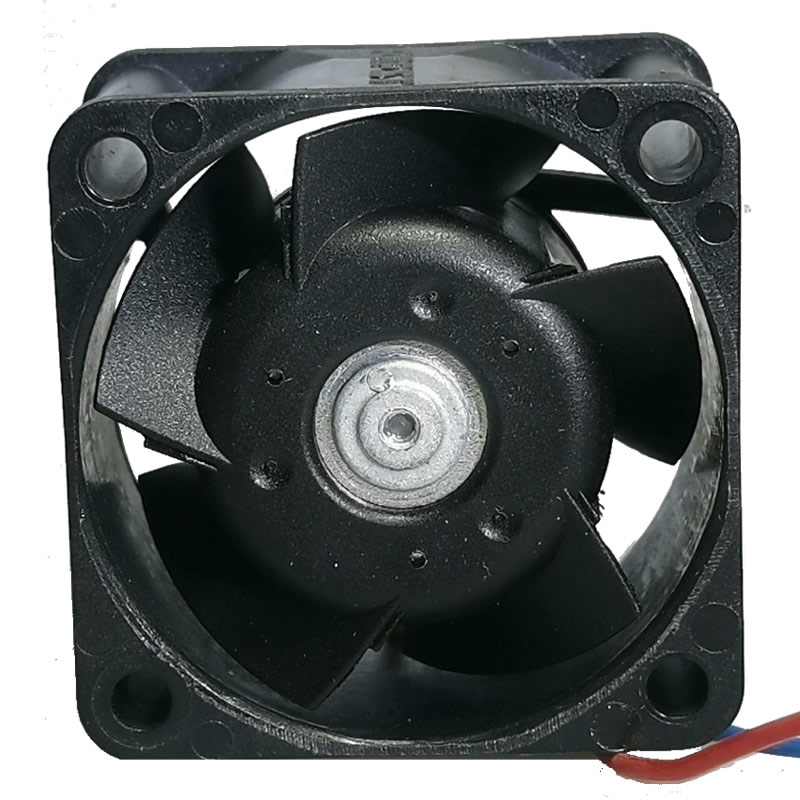

412JHH ebmpapst DC 8~13.5V 24m3/h 40x40x25mm 46dB(A) 6.1B 12VDC Ball Bearing 3.3W 13000RPM 2 Wire Leads axial fan
The 412JHH is a DC axial compact fan manufactured by ebm-papst, featuring a nominal voltage of 12VDC (voltage range: 8–13.5VDC), a rotational speed of 13000rpm, and a power consumption of 3.3W. It operates in an ambient temperature range of -20°C to 60°C, with an air flow rate of 24m³/h and a sound pressure level of 46dB(A). The fan rotates counterclockwise when viewed from the rotor side, utilizes a ball bearing, and has an L10 service life of 57500 hours at 40°C and 35000 hours at the maximum temperature. Equipped with AWG 26 stripped and tin-plated leads, it provides reverse polarity and blocked rotor protection, and is certified by VDE, CSA, and UL. Supporting speed signal output, this fan is suitable for compact cooling scenarios such as small electronic devices and embedded systems.
Specifications
| Part Number | 412JHH |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 14.1 CFM |
| Voltage Range | 8~13.5V |
| Fan Type | DC |
| Noise Level | 46 dB(A) |
| Sound power level | 6.1B |
| Dimensions | 40x40x25 mm |
| Air Flow (m3) | 0.395m³/min |
| Series | 400J |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Power Rating | 3.3 W |
| Fan Speed | 13000 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Approval Agency | CSA, UL, VDE |
| Weight | 0.111 lb (50.35 g) |
| Subcategory | Tubeaxial |
| Subcategory | DC axial compact fan |
