3214JH3-195 ebmpapst

Description

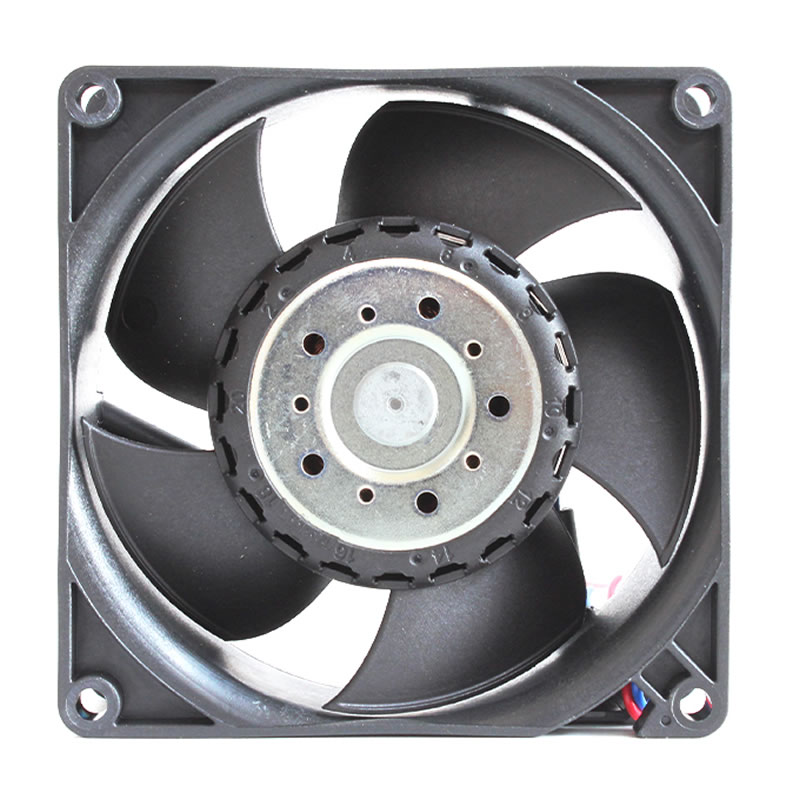

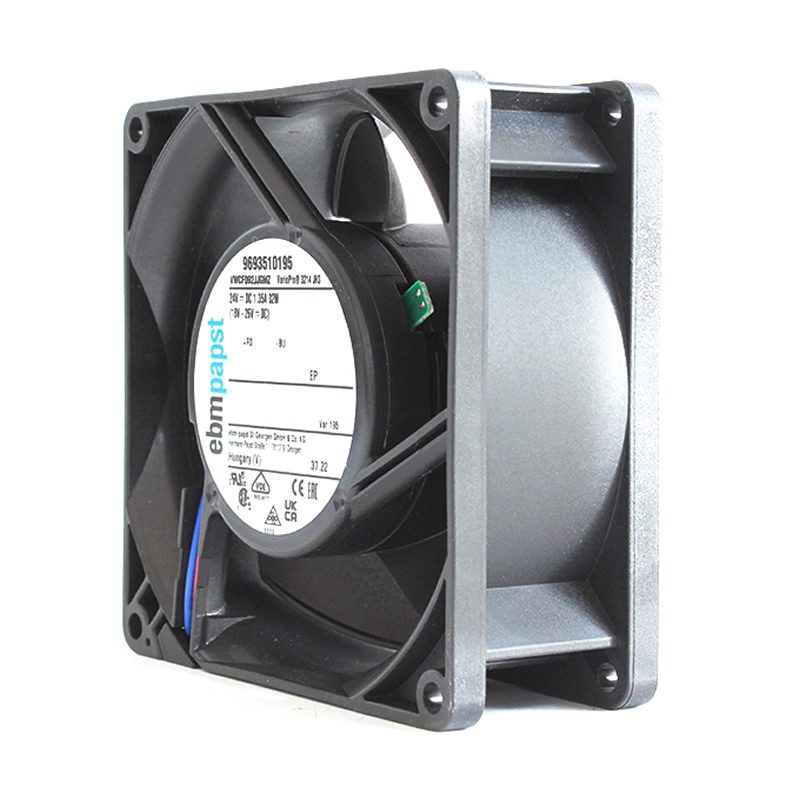

3214JH3-195 ebmpapst 92x38mm 24VDC 30W 1.25A 237m³/h 11000RPM 69dB(A) Leads DC axial fan

The 3214JH3-195 is a DC axial fan by ebm-papst, featuring ball bearings, clockwise rotation, and air discharge over struts with flexible mounting in any position. Mechanical specifications include 92×92×38mm dimensions, 0.24kg weight, a plastic housing and impeller, 310mm-long AWG24 wires (red for +UB, blue for -GND), and 30Ncm mounting torque (M4 screws). Electrical parameters cover a 24VDC nominal voltage (20–26VDC range), 20–31.2W power consumption, 1–1.2A current, 9250–10500rpm speed, and ≤5000mA starting current, with built-in rectifying diodes for reverse polarity protection (residual current ≤10mA) and auto-restart for blocked rotor (0.3s/10s cycle). Aerodynamically, it delivers 230m³/h max. free-air flow and 550Pa static pressure, with an optimal point at 120m³/h@218Pa and 66dB(A) sound pressure level. Environmental adaptability includes -20°C~55°C operation, -40°C~80°C storage, pollution degree 1 (dry environment), and certifications for CE, EAC, UL, and CSA (without VDE and CCC). With protection class III, >10MΩ insulation resistance, and L10 service life of 30,000 hours at max. temperature, it suits heat dissipation for electronic devices and small ventilation systems.
