Description

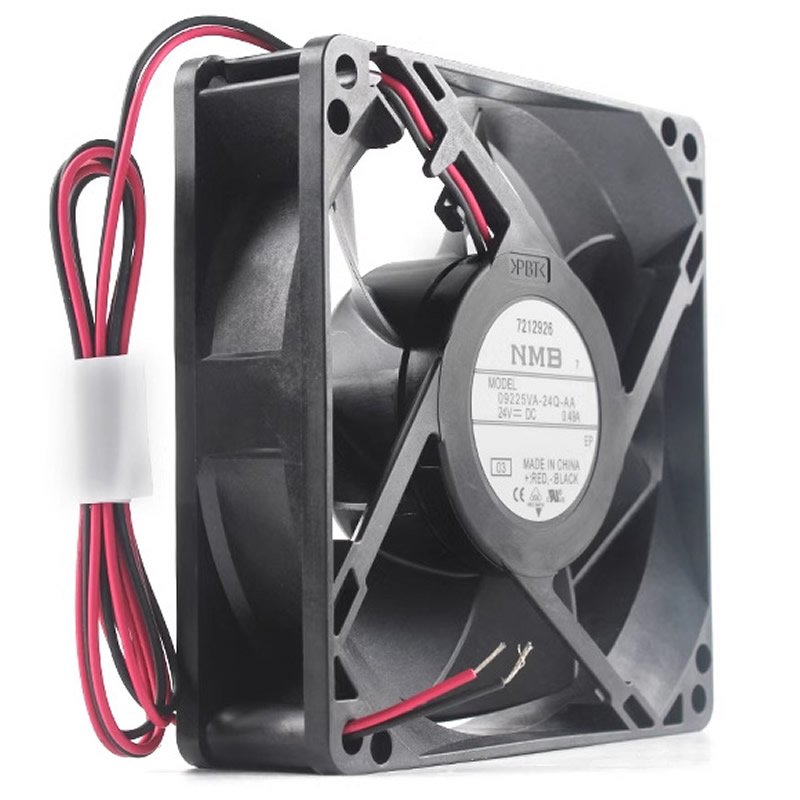

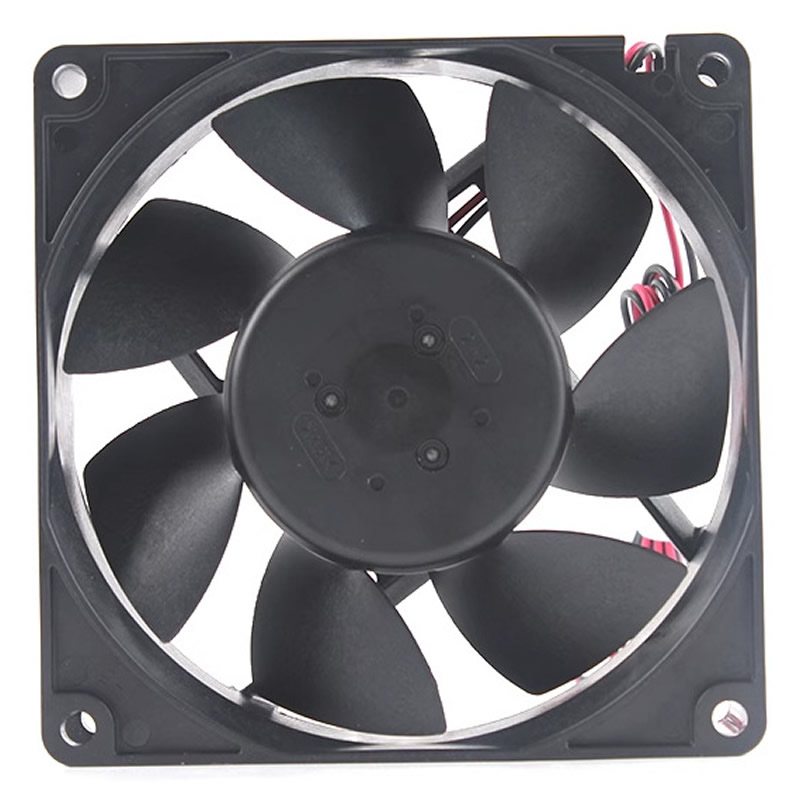

09225VA-24Q-AA-00 NMB Technologies 24VDC 92x92x25mm 96.4CFM Ball 51dB(A) 9.12W 5600RPM 2 Wire Leads Tubeaxial DC fan
The NMB 09225VA-24Q-AA-00 is a high-performance 24VDC tubeaxial fan, measuring 92×92×25 mm. It delivers a robust 96.4 CFM airflow at a speed of 5600 RPM, with a noise level of 51 dB(A)$. This fan utilizes reliable ball bearings, ensuring an expected lifetime of up to 100,000 hours at 25°C. It also integrates auto-restart and polarity protection features, enhancing operational reliability. While the standard model is typically designated for indoor or protected environments, NMB offers various versions within the 09225VA series with additional functionalities to meet diverse application requirements.
Specifications
| Part Number | 09225VA-24Q-AA-00 |
|---|---|
| Manufacturer | NMB Technologies |
| Current Rating | 0.49 A |
| Fan Type | DC |
| Series | 09225VA |
| Voltage Rating | 24 VDC |
| Dimensions | 92x92x25 mm |
| Air Flow | 96.4 CFM |
| Air Flow (m3) | 2.70m³/min |
| Static Pressure | 0.600 in H2O (149.5 Pa) |
| Bearing Type | Ball Bearing |
| Features | Auto Restart |
| Noise Level | 51 dB(A) |
| Power Rating | 9.12 W |
| Fan Speed | 5600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Subcategory | Tubeaxial |
